Building an ESP32 IoT Smart Home Dashboard

, ,

This project creates a complete data loop between your physical room and a web interface. It involves sensing environmental data using an ESP32 microcontroller, processing it via a Python Flask backend, and visualizing it on a custom-built dashboard.

Dashboard Desktop View

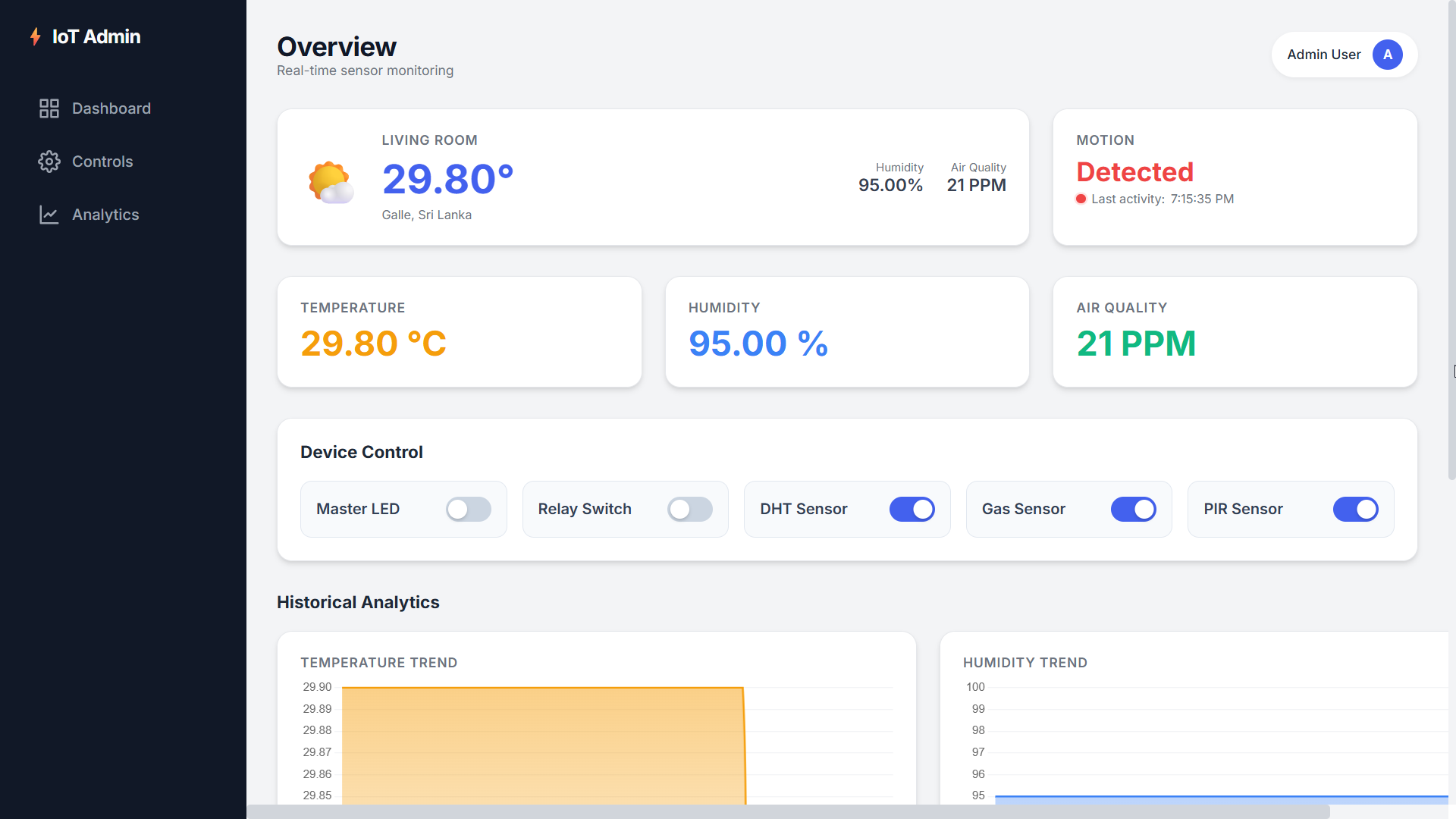

Figure 1: Desktop View - Live Sensor Widgets

Dashboard Desktop View 2

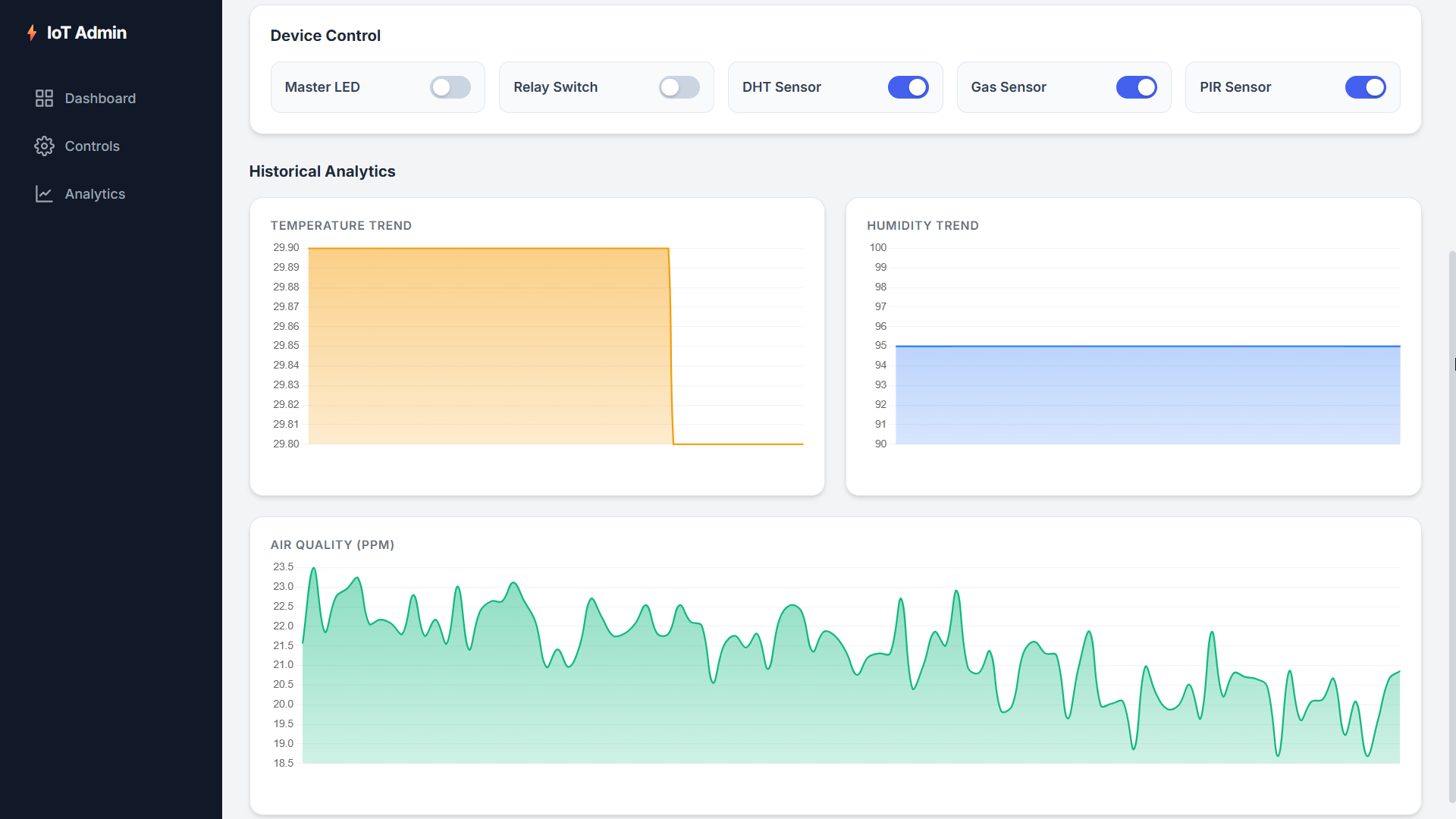

Figure 2: Desktop View - Historical Data Charts

Dashboard Mobile View

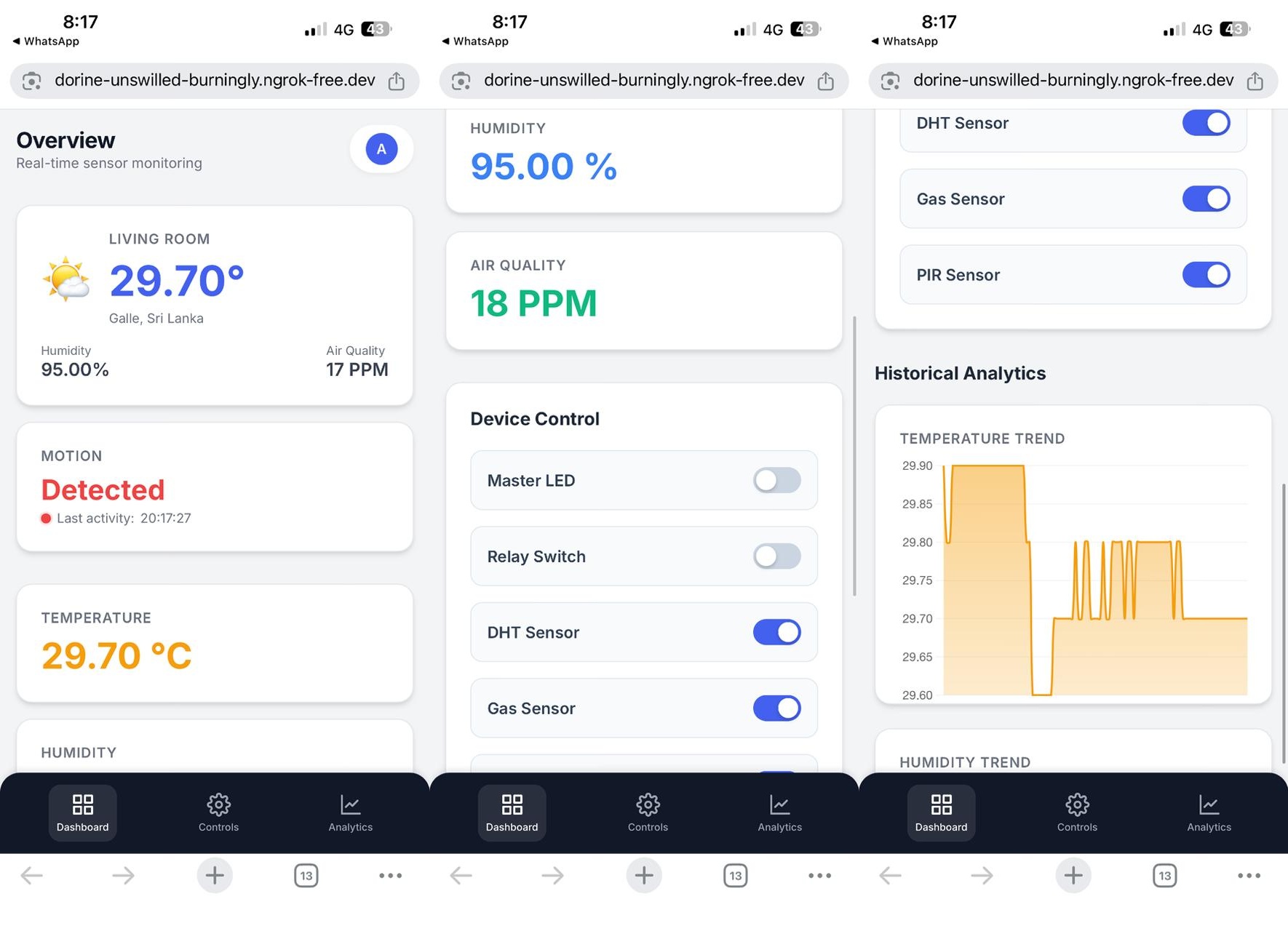

Figure 3: Mobile Responsive View

How It Works

The system operates in three main stages:

  1. Sensing & Processing: The ESP32 continuously reads data from DHT11 (Temp/Humidity) and MQ-2 (Gas/Smoke) sensors. It calculates PPM values for gas and monitors motion via a PIR sensor, publishing everything to a public MQTT broker (HiveMQ).
  2. Data Management & Server: A Python Flask server subscribes to the MQTT broker. When data arrives, it logs it into a SQLite database (sensor_data.db) to maintain a history of readings.
  3. Visualization & Control: The web dashboard visualizes live data and trends. Toggling a switch on the UI sends a request to the Python server, which publishes a command back to the ESP32 to trigger physical hardware (LEDs or Relays).

Project Features

  • Live Sensor Monitoring: Real-time data for Temperature, Humidity, Air Quality (in PPM), and Motion.
  • Historical Analytics: Sensor data is logged to a database and visualized with interactive charts.
  • Advanced Two-Way Control: Toggle physical devices (LED and 5V Relay) directly from the dashboard.
  • Remote Sensor Management: Individually enable or disable specific sensors (DHT, Gas, PIR) to save power.
  • Robust Architecture: Uses MQTT for fast, lightweight communication.
  • Modern Responsive UI: A professional "Glassmorphism" design built with Tailwind CSS.
  • Public Access: Accessible from anywhere in the world using a secure ngrok tunnel.

Project Architecture

The data flows through the system in two main ways:

  • Sensor Data (ESP32 to Dashboard): ESP32 (Sensors) → MQTT Broker → Python Backend (Flask) → SQLite Database & Web Frontend
  • Control (Dashboard to ESP32): Web Frontend → Python Backend → MQTT Broker → ESP32 (Toggles LED, Relay & Logic)

Hardware Requirements

  • ESP32 Development Board
  • DHT11 (Temperature & Humidity Sensor)
  • MQ-2 (Smoke/Gas Sensor)
  • HC-SR501 (PIR Motion Sensor)
  • 5V Relay Module (JQC3F-05VDC-C)
  • 1x LED & 330 Ohm Resistor
  • Breadboard and Jumper Wires
Hardware Setup

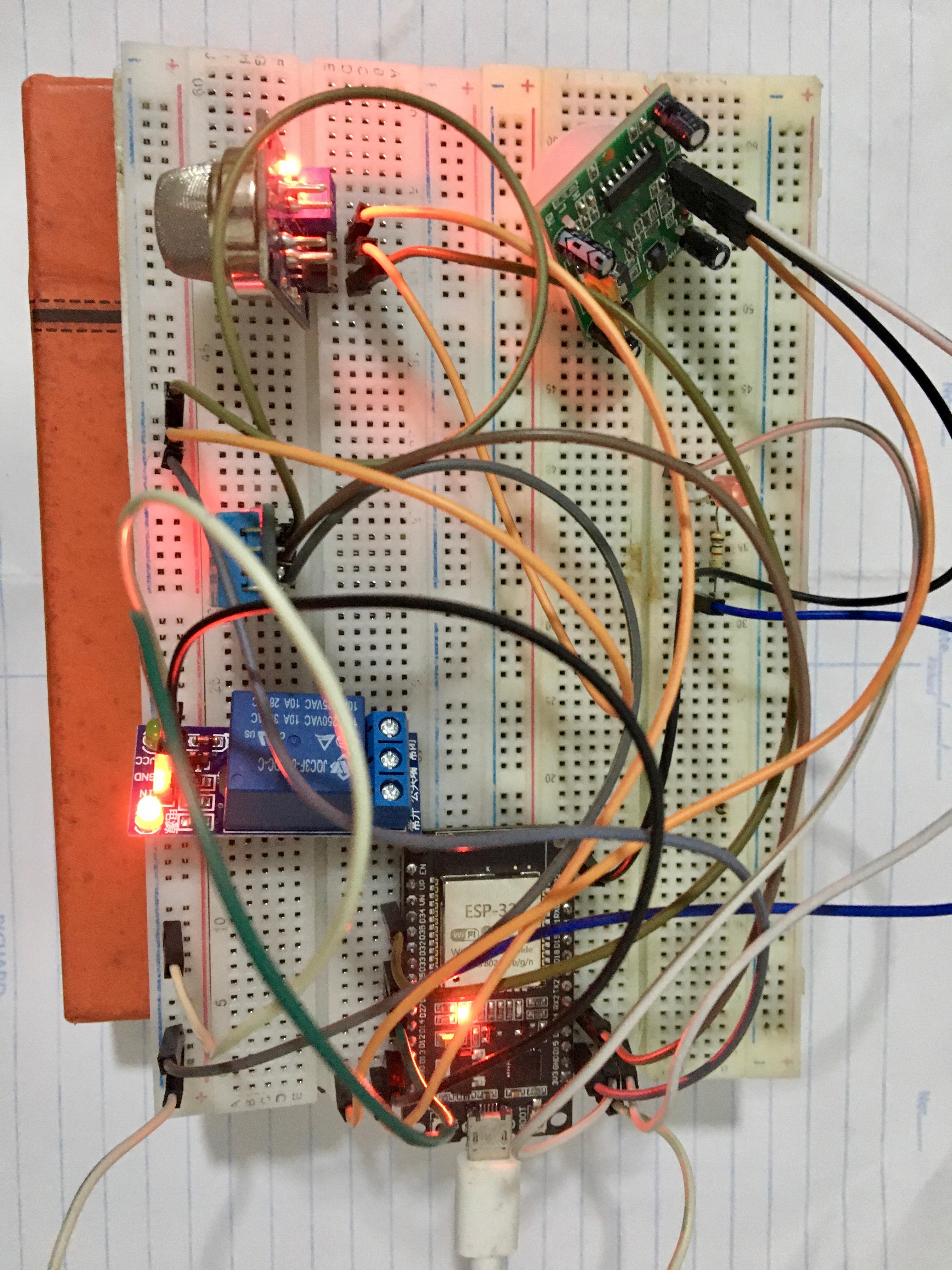

Figure 4: Physical Hardware Setup on Breadboard

Software & Libraries

1. ESP32 (Arduino IDE)

You will need to install the following libraries via the Arduino Library Manager:

2. Python Backend (Your PC)

You will need Python 3 and the following libraries:

pip install Flask paho-mqtt

Project Files

Download the source code to get started:

Step-by-Step Project Flow

Part 1: Hardware Setup

Wire your components to the ESP32. The pins below match the provided code:

  • DHT11 (DATA): → GPIO 4
  • MQ-2 Sensor (A0): → GPIO 34
  • PIR Sensor (OUT): → GPIO 23
  • LED (Positive Leg): → 330 Ohm Resistor → GPIO 25
  • Relay Module (IN): → GPIO 26
  • Power: Connect Relay VCC to VIN (5V). Connect all GND pins to ESP32 GND.

Part 2: Device (ESP32) Configuration

  1. Open your ESP32 sketch (`.ino` file) in the Arduino IDE.
  2. Install the libraries listed above.
  3. Update the Wi-Fi credentials at the top of the file:
const char* ssid = "YOUR_WIFI_SSID";
const char* password = "YOUR_WIFI_PASSWORD";
  1. Upload the code to your ESP32.
  2. Open the Serial Monitor (115200 baud). Wait for the "Clean Air Calibration" to finish.

Part 3: Backend (Python) Setup

  1. Create a project folder (e.g., `iot-dashboard`).
  2. Inside it, place your Python script: `app.py`.
  3. Create a folder named `templates`.
  4. Place the `index.html` file **inside** the `templates` folder.
  5. Open a terminal in your project folder and install dependencies: pip install Flask paho-mqtt

Part 4: Running the System Locally

  1. Ensure your ESP32 is powered on.
  2. Run the Flask app:
python app.py
  1. The server will start, connect to MQTT, and generate the `sensor_data.db` file.
  2. Open your browser to: http://127.0.0.1:5000.

Part 5: Public Access with ngrok

To access your dashboard from your phone or outside your home:

  1. Download `ngrok` and authenticate it.
  2. With `app.py` running, open a new terminal and run:
ngrok http 5000
  1. Use the generated `https://...ngrok.io` URL on any device.

Future Improvements

  • Permanent Cloud Deployment: Deploy the `app.py` to a VPS or cloud platform for 24/7 uptime without a PC.
  • Private Broker: Switch from the public HiveMQ broker to a private Mosquitto instance for enhanced security.
  • PCB Design: Move from a breadboard to a custom printed circuit board for a cleaner hardware look.

Challenges & Lessons Learned

Building this IoT system revealed several interesting technical hurdles:

  • Voltage Logic Levels: The ESP32 operates on 3.3V logic, but the Relay module and MQ-2 sensor prefer 5V. I had to ensure the Relay VCC was connected to the **VIN** pin (5V) of the ESP32 to trigger reliable switching.
  • MQTT Latency: Using a public broker like HiveMQ is great for free testing, but sometimes introduces latency. For a snappier response time when toggling the LED, I optimized the Python loop to publish commands immediately without waiting for the next sensor read cycle.
  • Sensor Calibration: The MQ-2 gas sensor requires a "burn-in" period. Initially, the readings were fluctuating wildly. Adding a calibration delay in the `setup()` function of the ESP32 code stabilized the baseline air quality readings.
