Windows Active Directory Practice Lab on Azure

, ,

This project documents the step-by-step creation of a Windows Active Directory (AD) practice lab hosted entirely on Azure. The goal was to simulate a realistic corporate environment ("Gotham City") with a Domain Controller and multiple client workstations to practice AD administration, user management, and network configuration.

Lab Architecture & Resources

The lab is contained within a single Resource Group (ADLab) and Virtual Network (ADLabNet - 10.0.1.0/24). It consists of three primary Virtual Machines:

  • GOTHAM-DC: Windows Server 2019 (The Domain Controller)
  • THEBATMAN: Windows 10 Enterprise (User: Bruce Wayne)
  • WAYNEENT: Windows 10 Enterprise (User: Lucius Fox)

Domain controller

  • VM name : GOTHAM-DC
  • Image : Windows Server 2019 Datacenter
  • Username : anjula
  • Password : labuser123Anjula
  • Vnet : ADLabNet (10.0.1.0/24)
  • Connection : RDP (3389)

User machine 1

  • VM name : THEBATMAN
  • Image : Windows 10 Enterprise
  • Username : bwayne
  • Password : myPassword01
  • Vnet : ADLabNet (10.0.1.0/24)
  • Connection : RDP (3389)

User machine 2

  • VM name : WAYNEENT
  • Image : Windows 10 Enterprise
  • Username : lfox
  • Password : myPassword02
  • Vnet : ADLabNet (10.0.1.0/24)
  • Connection : RDP (3389)

Connecting to DC VM

RDP into GOTHAM-DC with Username : anjula & Password : labuser123Anjula

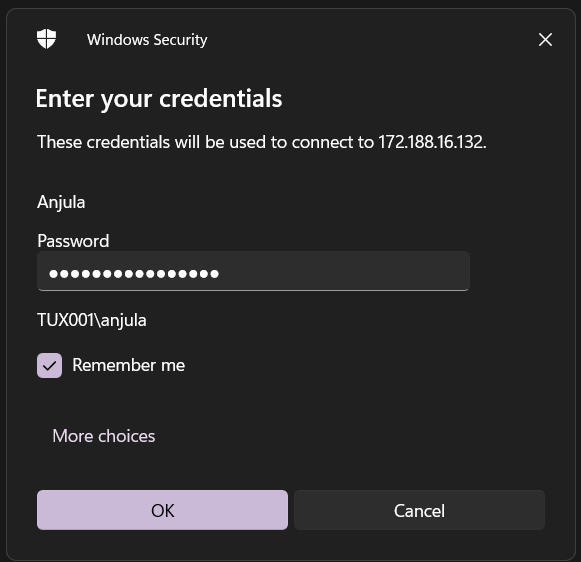

RDP Connection

Configuring services

Launch Server manager > Add roles and features > Add roles and features wizard

  • Server Roles : Active Directory Domain Service

Install service.

Choose “Promote this server to a domain controller”.

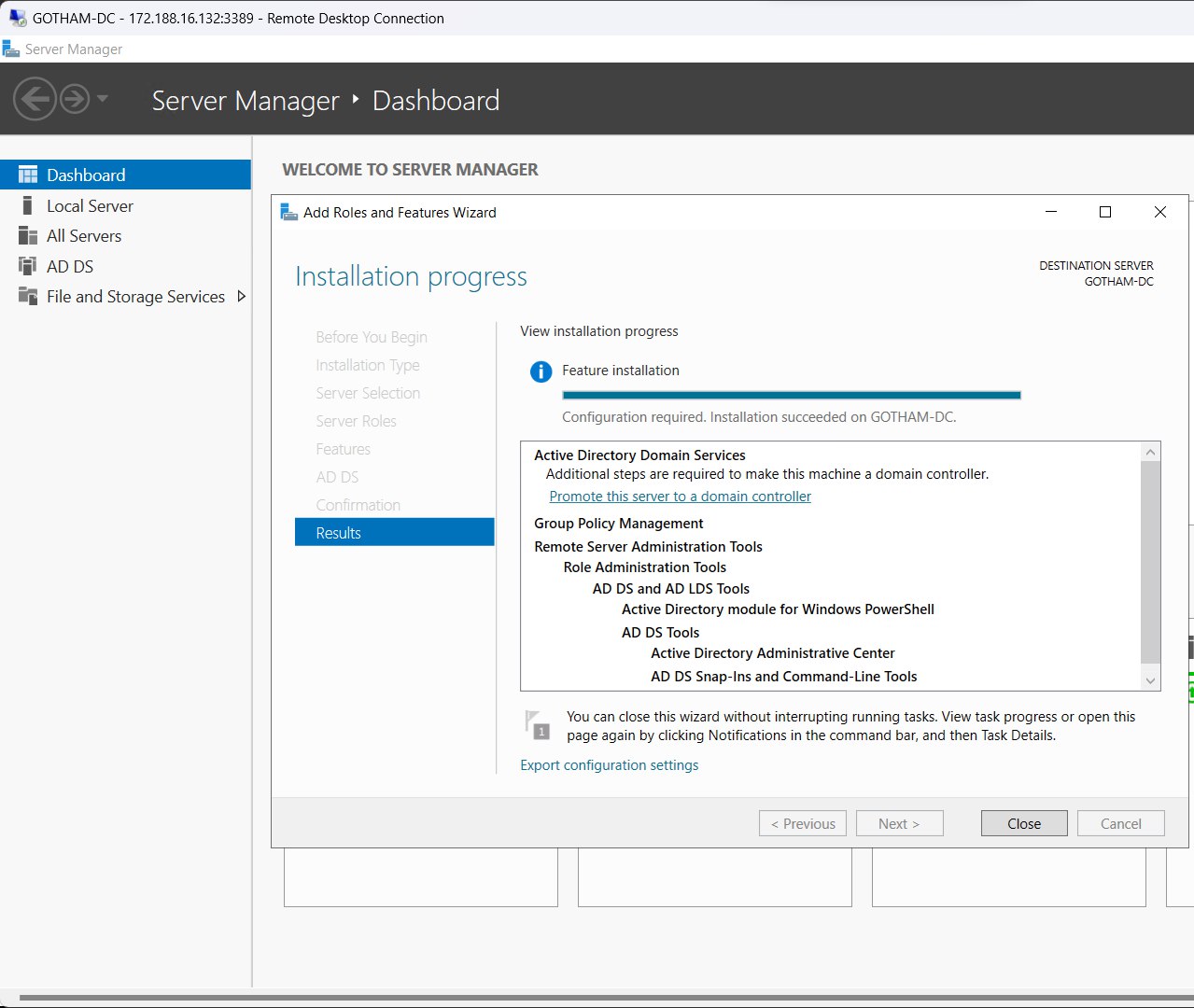

Promoting VM to domain controller

Active directory domain service configuration wizard > Deployment configuration > Add a new forest

  • Root domain name : GOTHAM.local
  • Forest function level : Windows Server 2016
  • Domain function level : Windows Server 2016
  • Password : labuser123Anjula
  • NetBIOS domain name : GOTHAM

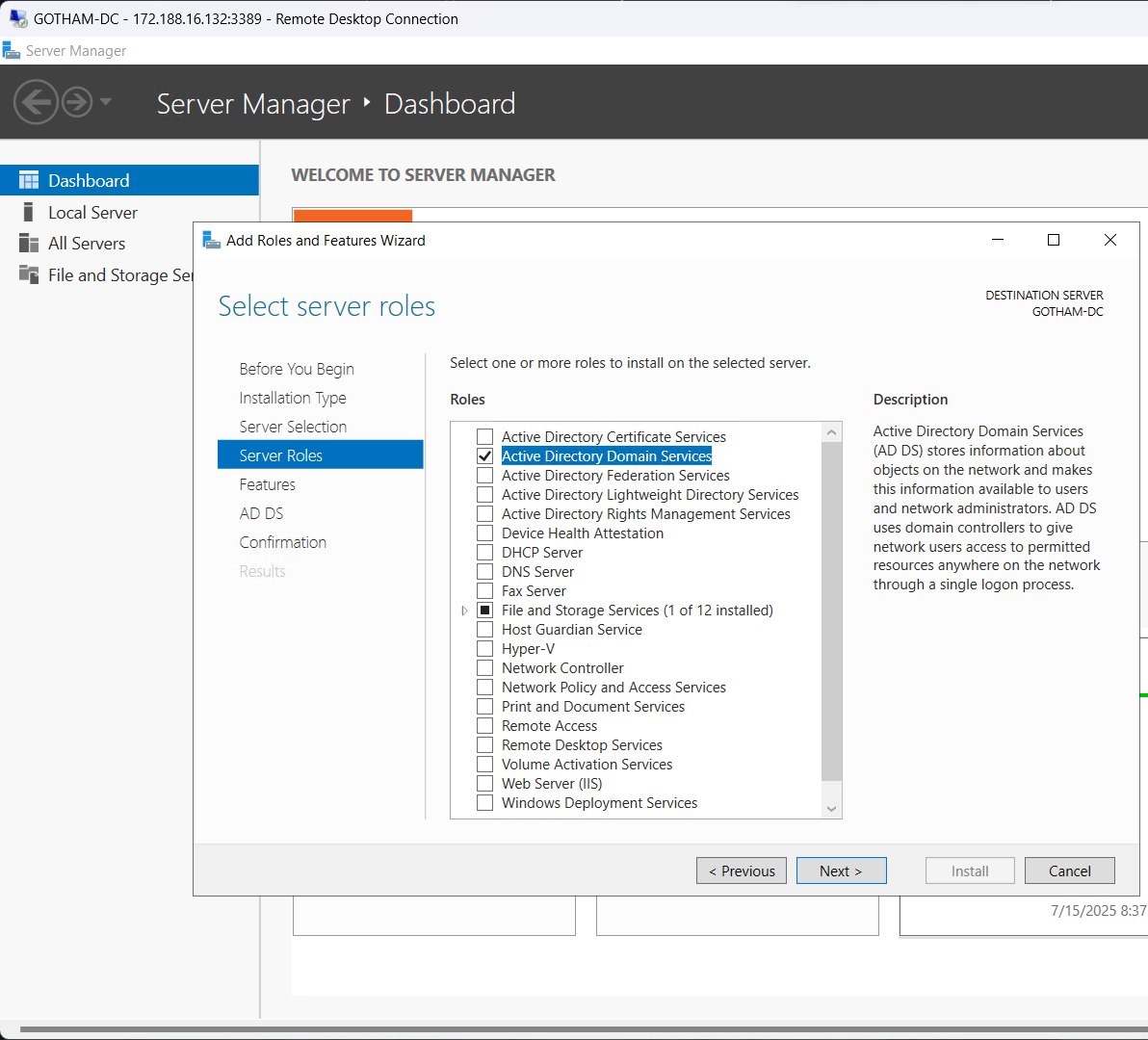

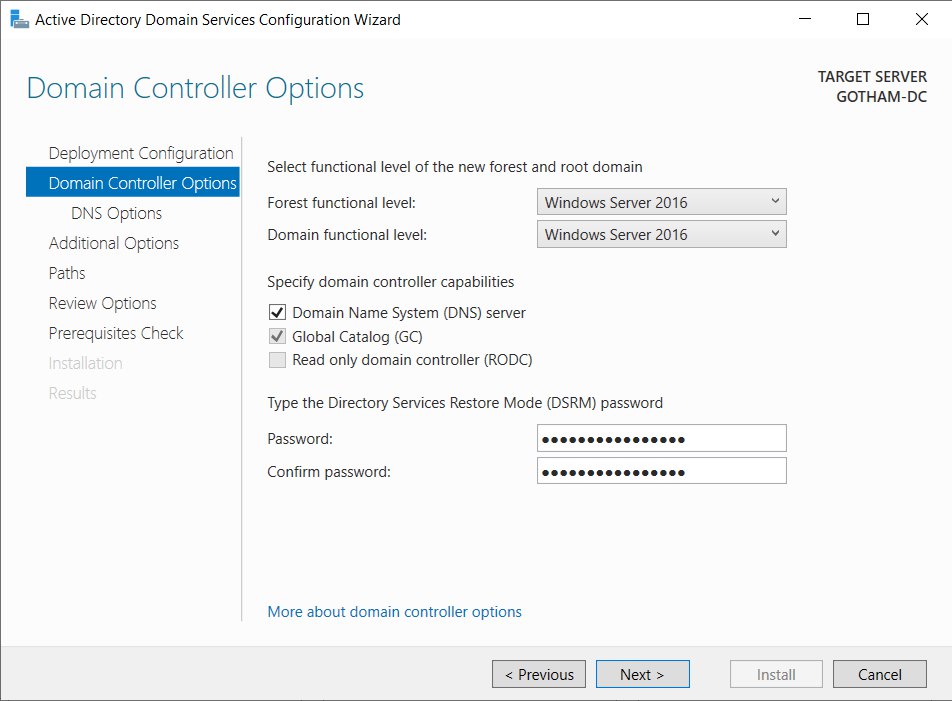

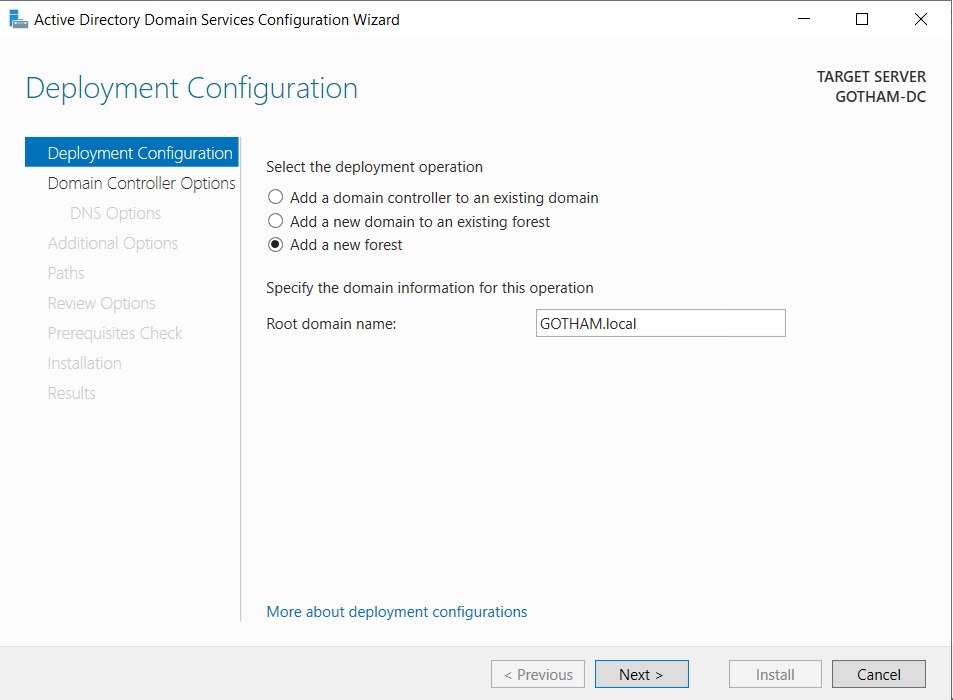

AD Config Wizard Deployment Config Additional Options Prerequisites Check

Reboot machine.

RDP into GOTHAM-DC with domain credentials; Username : GOTHAM\anjula & Password : labuser123Anjula

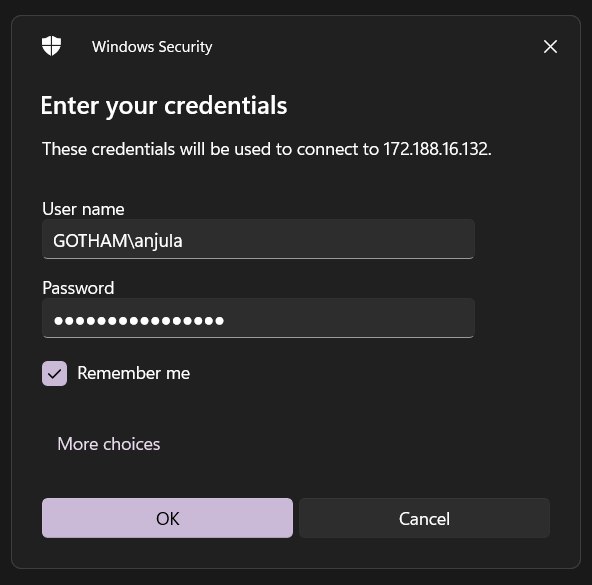

Server Manager

Configuring certificate services

Launch Server manager > Add roles and features > Add roles and features wizard

  • Server roles : Active Directory Certificate Services

Install service.

Choose “Configure Active Directory certificate services on the destination server”.

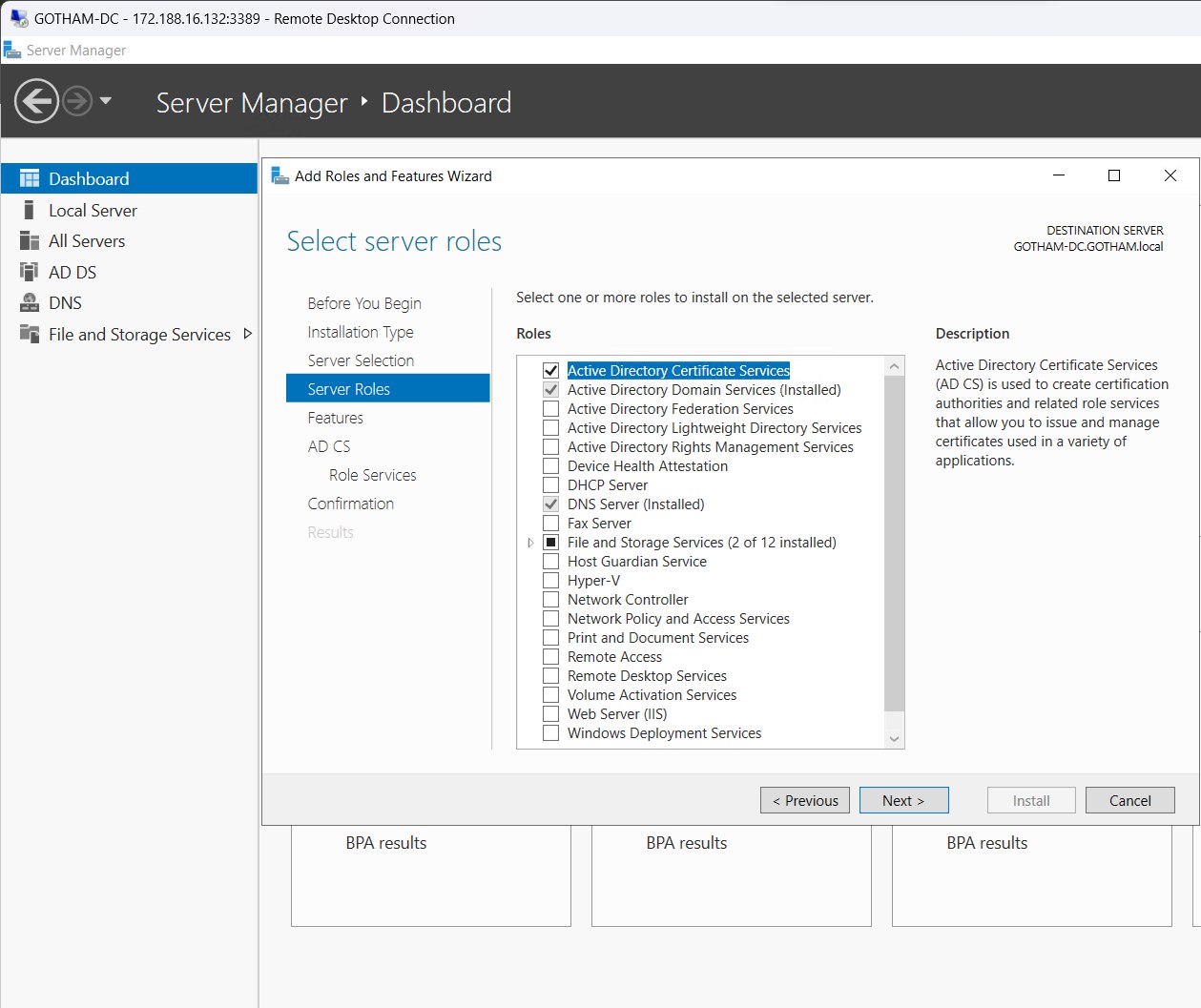

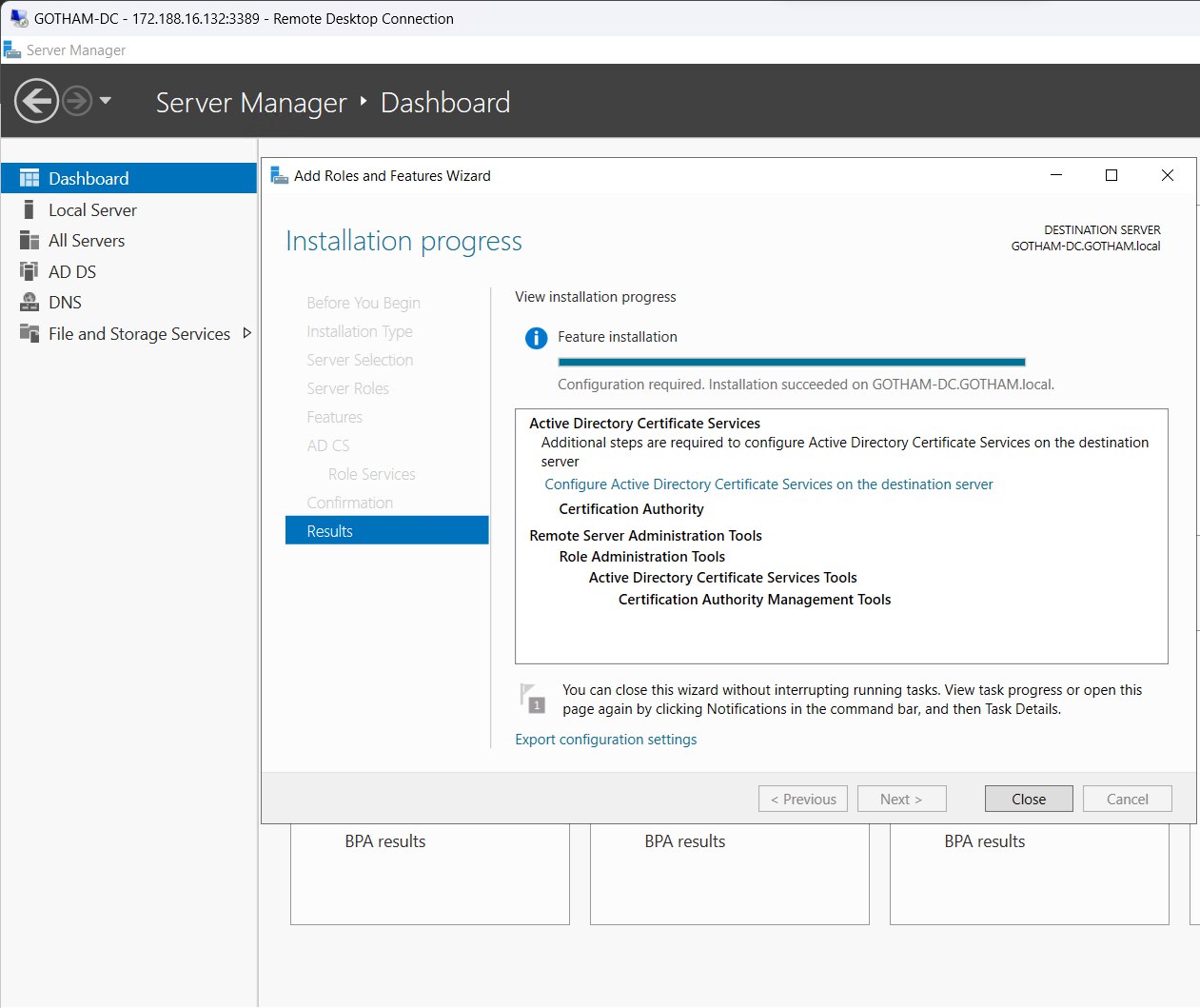

AD CS Config Role Services

AD CS configuration wizard >

  • Credentials : GOTHAM\anjula
  • Role services : Certification Authority
  • Setup type : Enterprise CA
  • CA type : Root CA
  • Private key > Validity period : 99 years

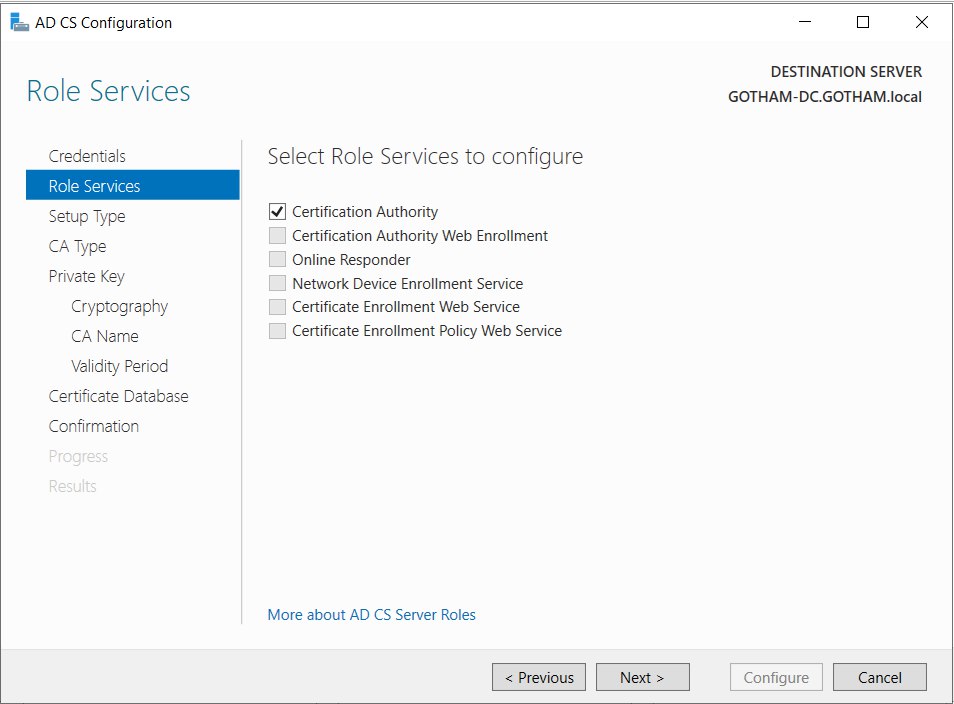

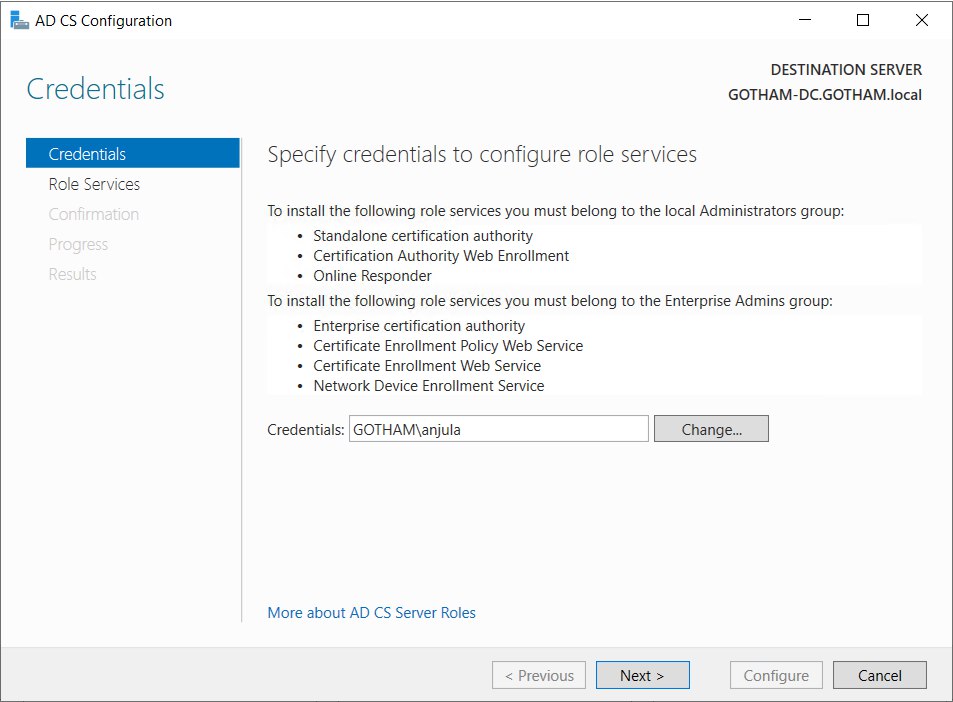

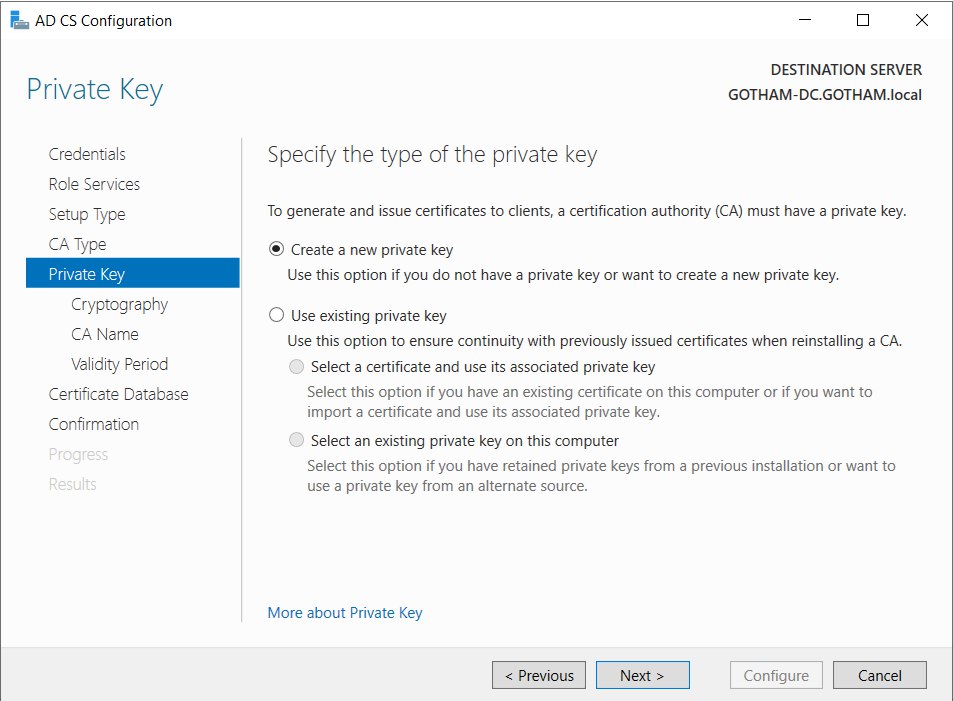

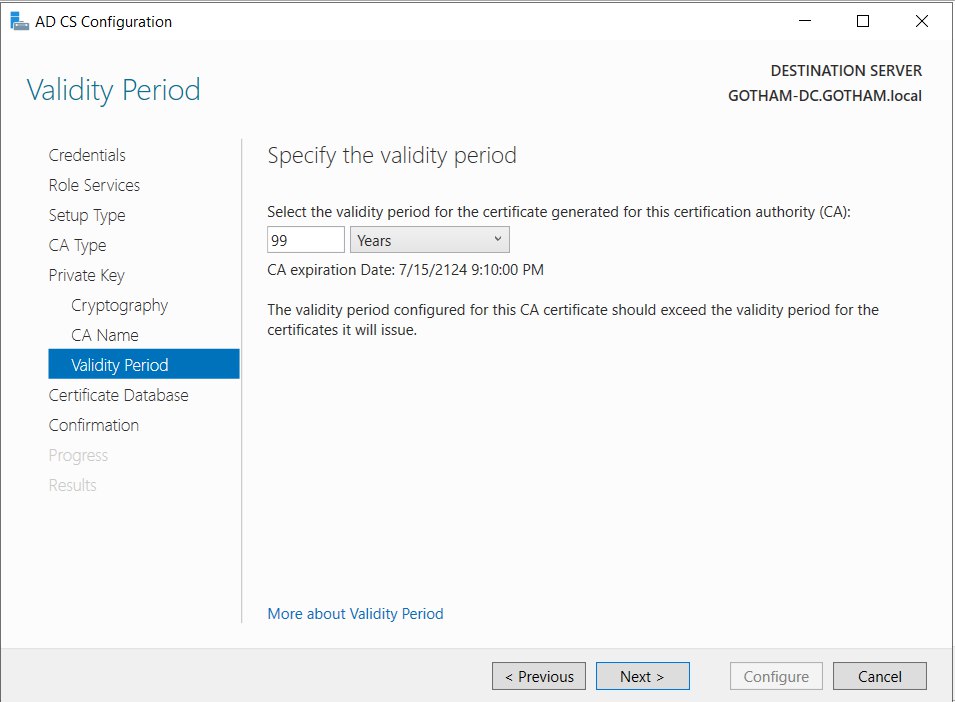

CA Type Private Key Cryptography Confirmation

Configure and reboot machine.

Setting up a share

This PC > C:\ Drive > Create new folder “hackme”

Launch Server manager > File and storage services > Shares > Tasks > New share wizard >

  • File share profile : SMB Share - Quick
  • Share location > custom path : C:\hackme
  • Share name : hackme

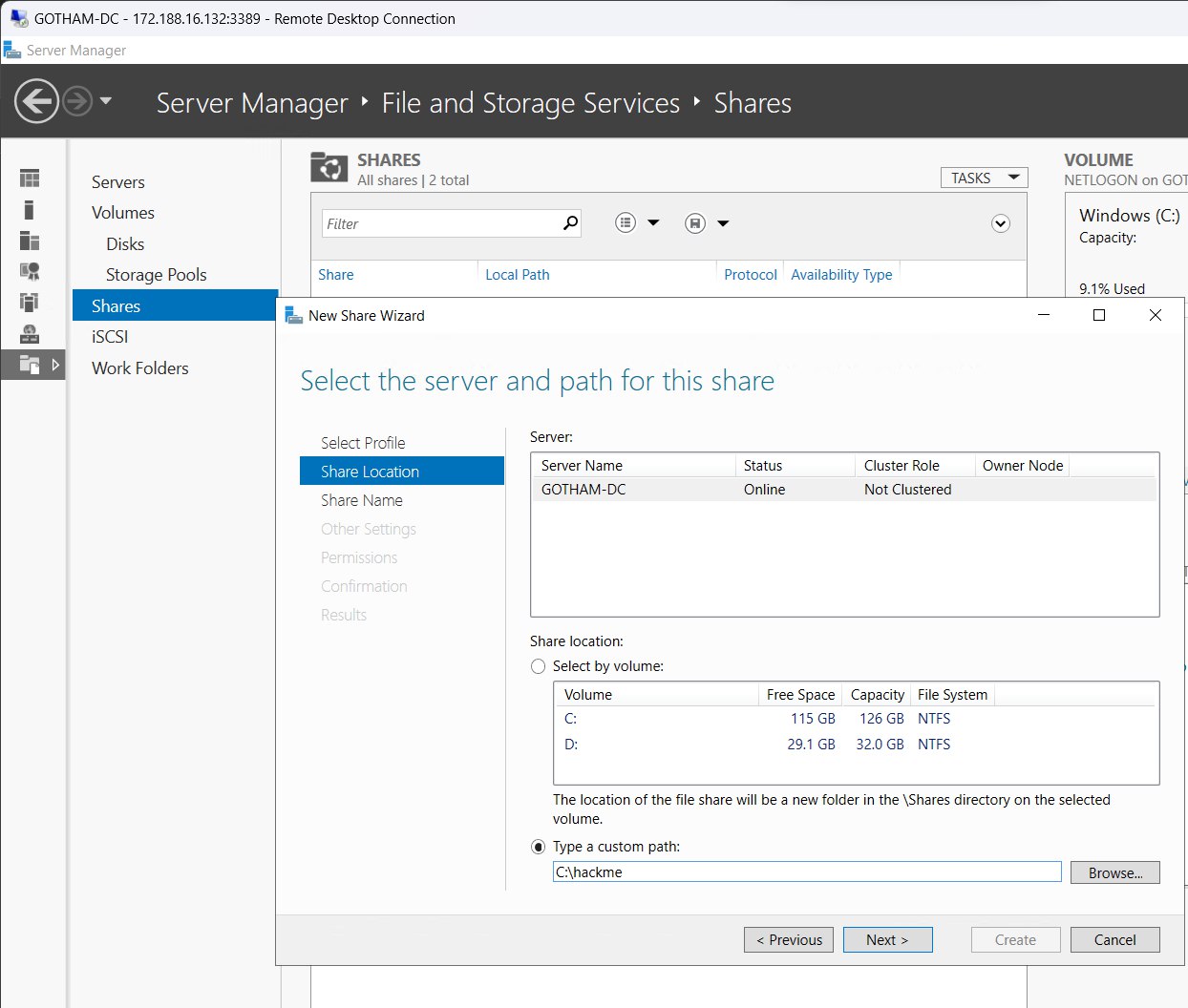

Share Config

Create and close.

Creating domain users

Launch Server manager > Tools > Active Directory users and computers > MARVEL.local

Create new Organizational unit (OU) “Groups”

Move every entry except “Guest” and “anjula” from Users to Groups

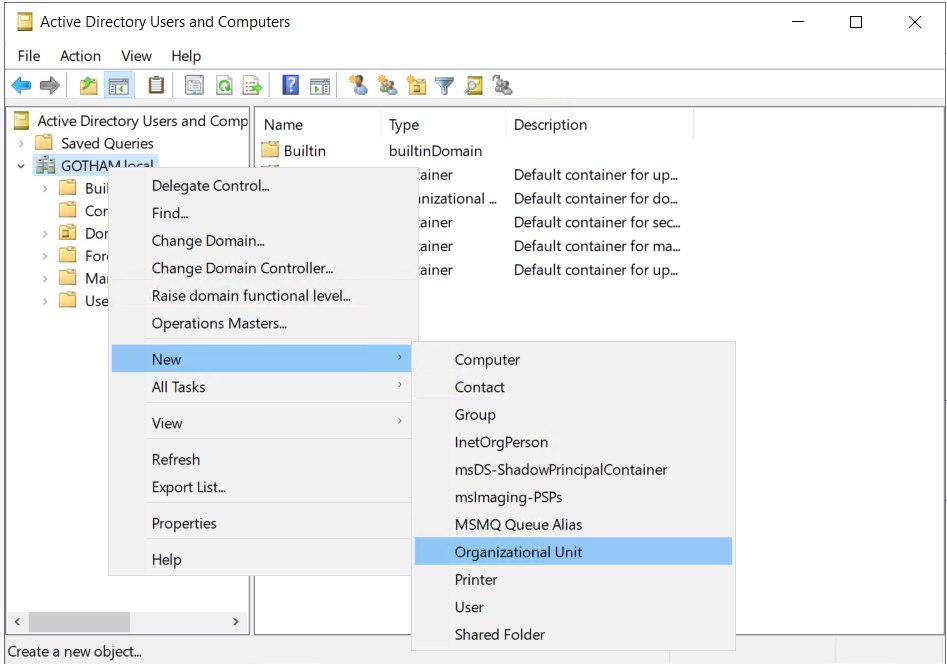

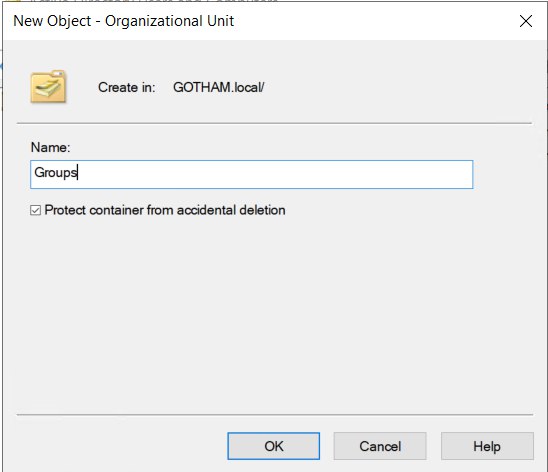

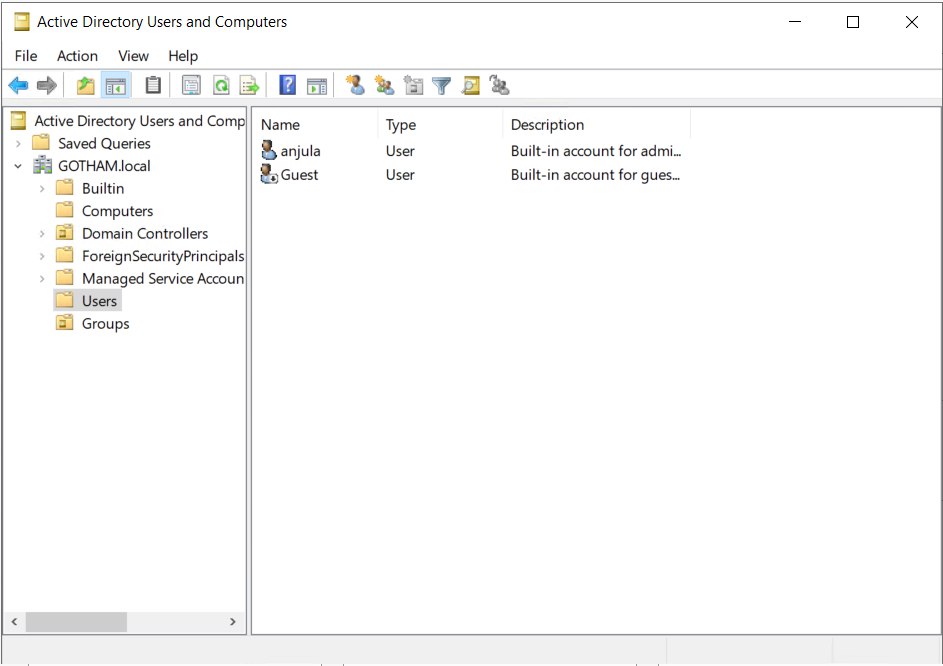

Creating OUs Moving Users OU Structure

MARVEL.local > Users >

Create new user

  • First name : Bruce
  • Last name : Wayne
  • User login name : bwayne
  • Password : Password1
  • Check “Password never expires”

Create another user

  • First name : Lucious
  • Last name : Fox
  • User login name : lfox
  • Password : Password2
  • Check “Password never expires”

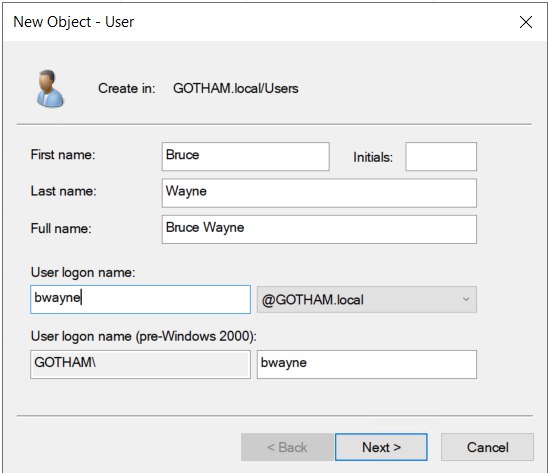

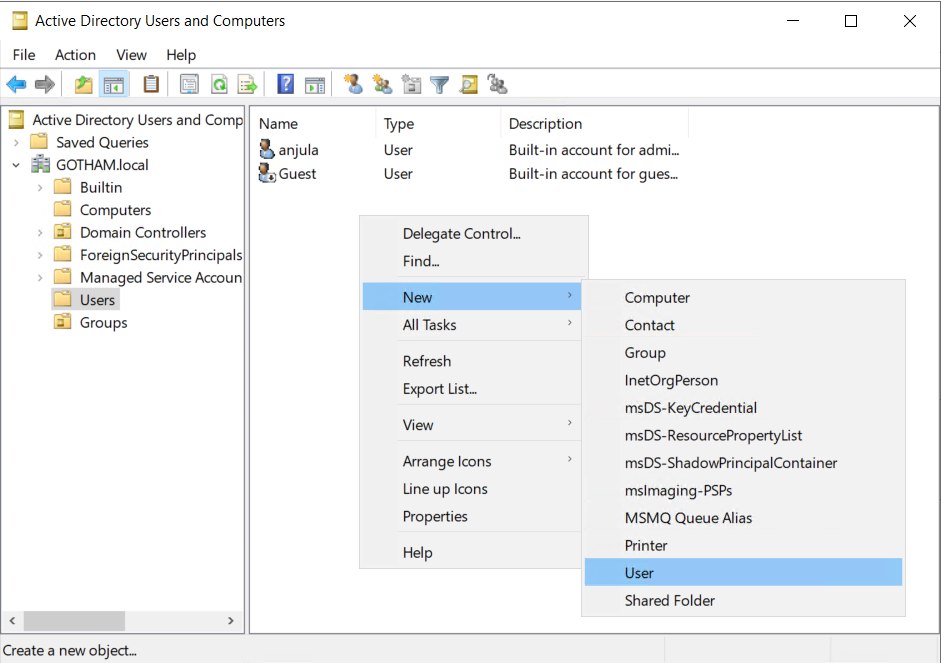

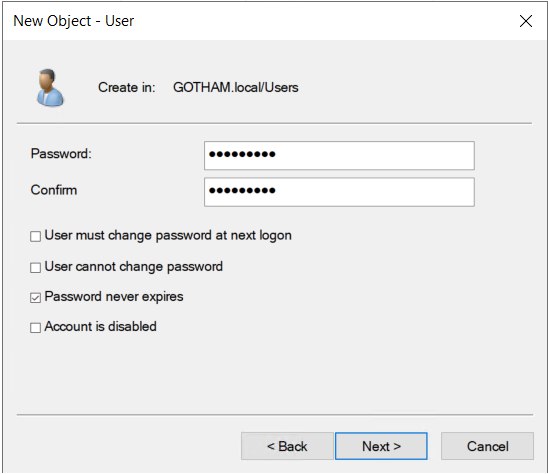

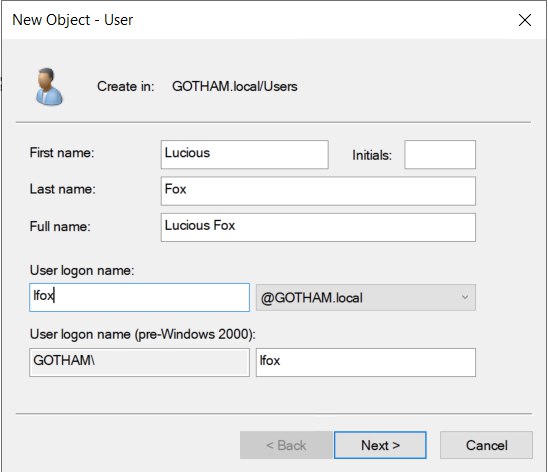

Creating User Bruce Password Settings Creating User Lucius Copying User

Copy user “anjula” to create another user

  • First name : SQL
  • Last name : Service
  • User login name : SQLService
  • Password : MYpassword123#

SQLService > properties >

  • Description : “Password is MYpassword123#”

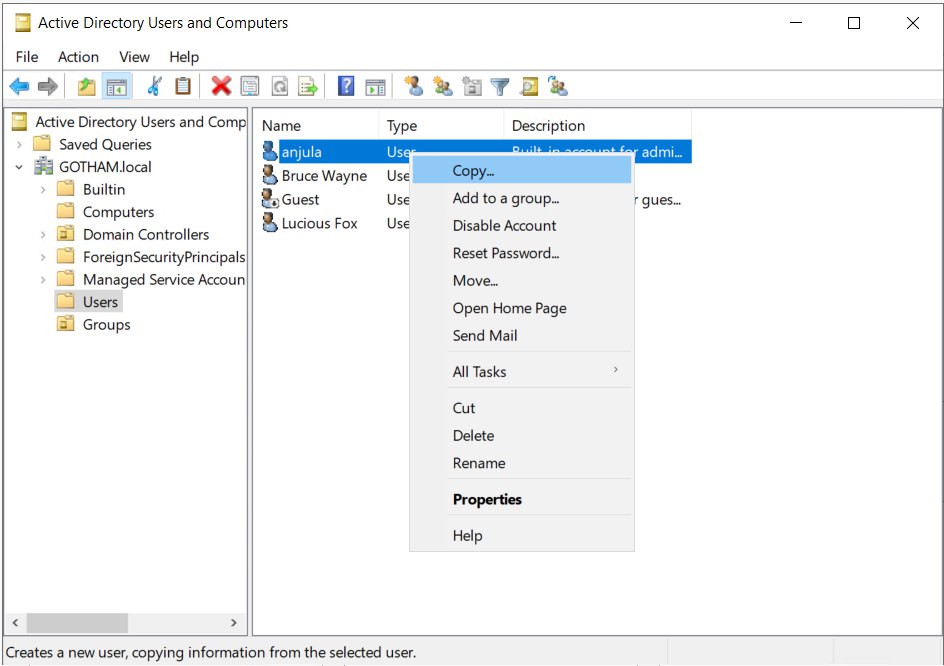

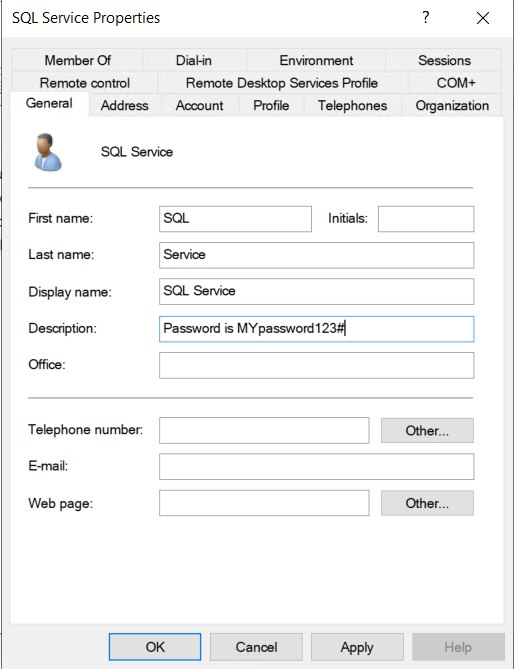

SQLService Properties SQLService Description User List

Setting up SPNs

Launch Command prompt as administrator.

Setup SPN for SQLService account

setspn -a GOTHAM-DC/SQLService.GOTHAM.local:60111 GOTHAM\SQLService

Confirm SPN.

setspn -T GOTHAM.local -Q */*

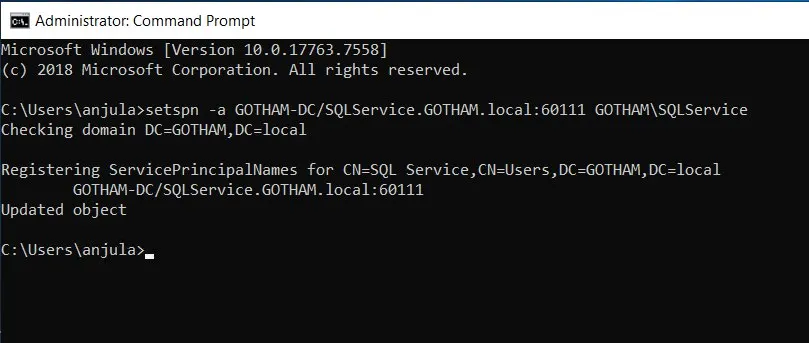

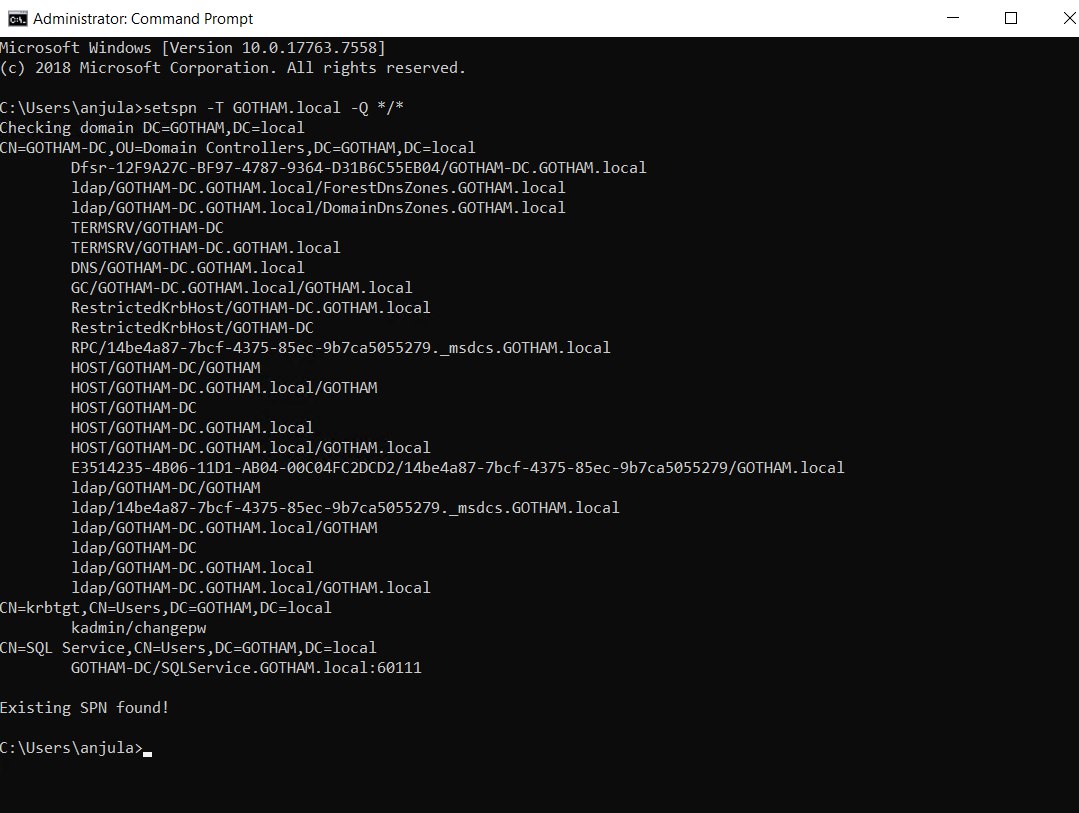

SPN Output SPN Verification

Domain machine IP address

Command prompt >

ipconfig
  • IP : 10.0.1.4/24

Connecting to user machines

RDP into THEBATMAN with Username : bwayne and Password : myPassword01

Launch File explorer > Network

Turn on Network discovery.

Launch Settings > Network & internet > Ethernet > Change adapter settings

Choose Ethernet > properties > Internet Protocol version 4 (TCP/IPv4)

  • Preferred DNS server : 10.0.1.4

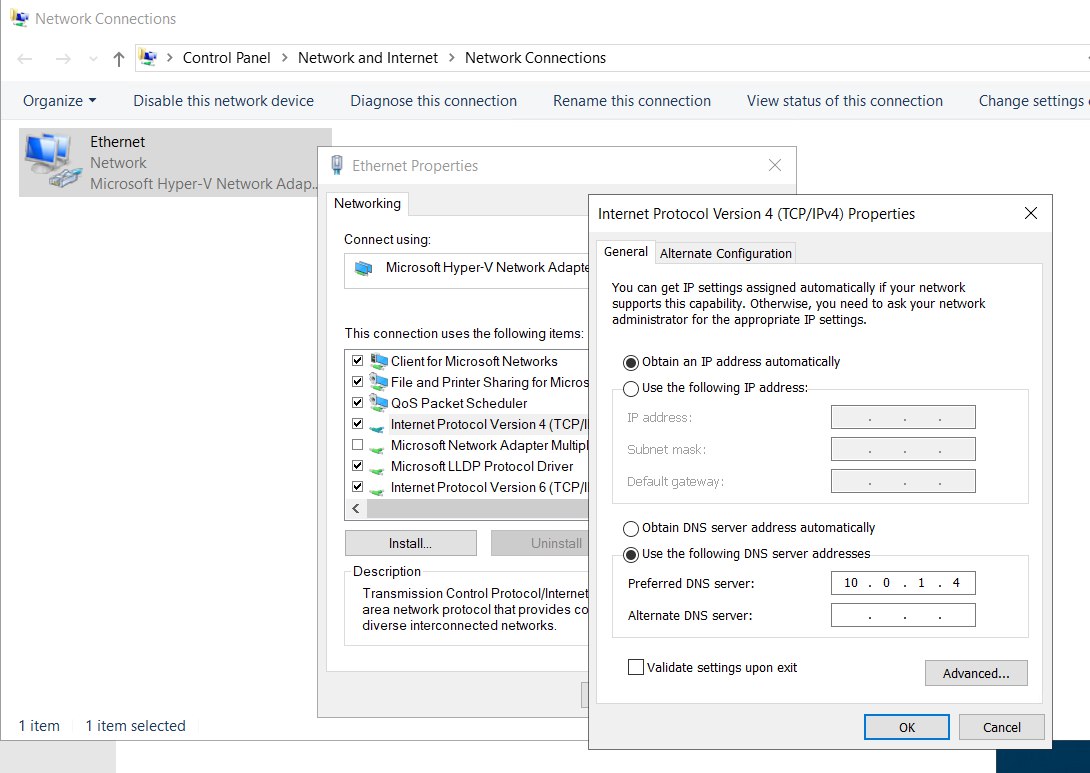

DNS Configuration

RDP connection will be lost. Reconnect to the same user “bwayne”

Launch Settings > Accounts > Access work or school > Connect

Choose “Join this device to a local Active Directory domain”.

  • Domain name : GOTHAM.local

Join a domain >

  • User : anjula
  • Password : labuser123Anjula

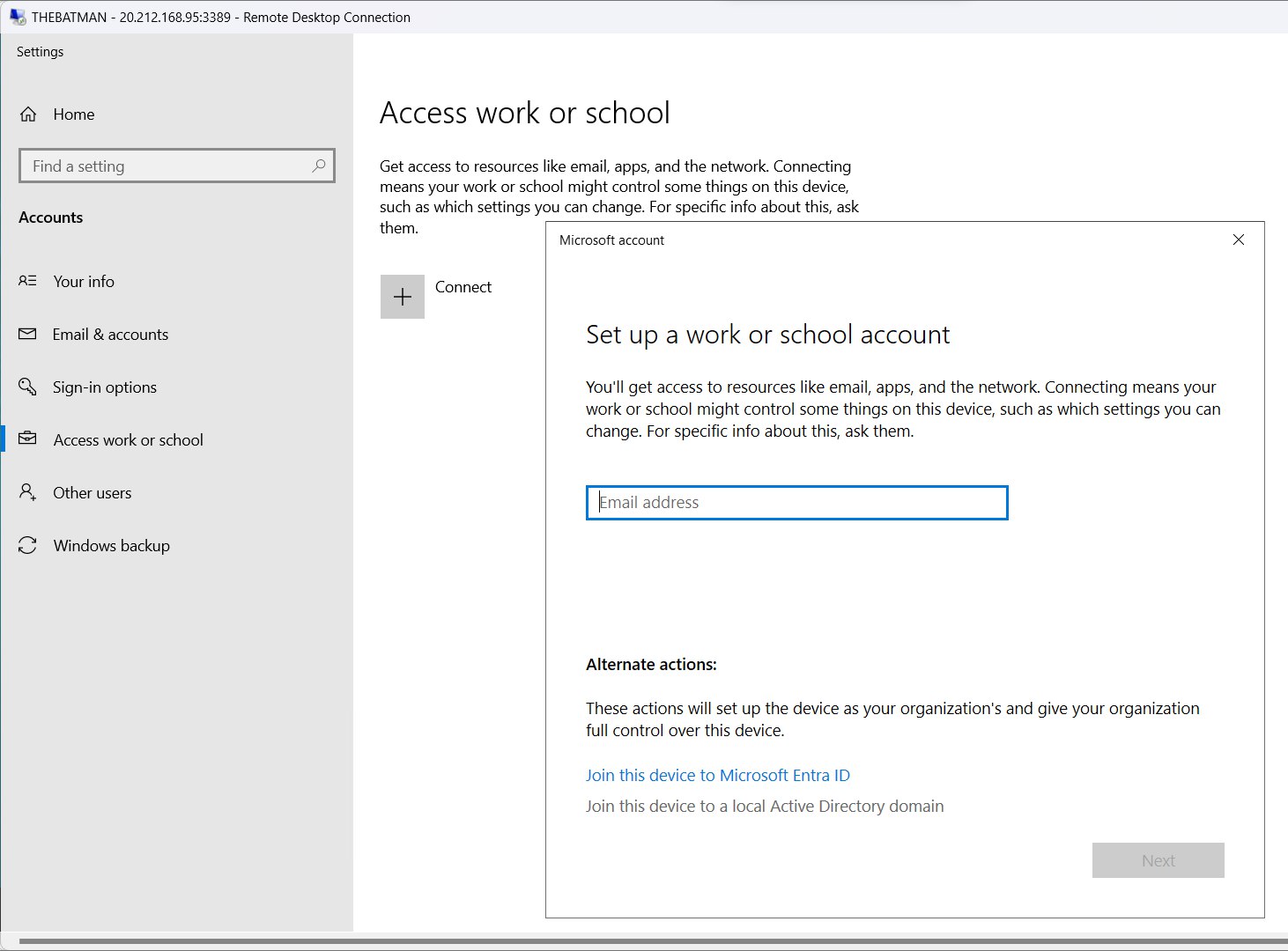

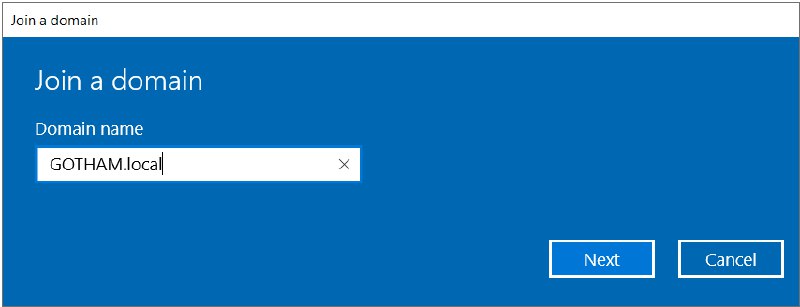

Join Domain Domain Success

Restart machine.

RDP into WAYNEENT with Username : lfox and Password : myPassword02

Repeat the same process above.

Configuring Domain users to user machines

Launch GOTHAM-DC > Server manager > Tools > Active Directory users and computers > MARVEL.local > Computers

Both user computers “THEBATMAN” and “WAYNEENT” is listed under the domain.

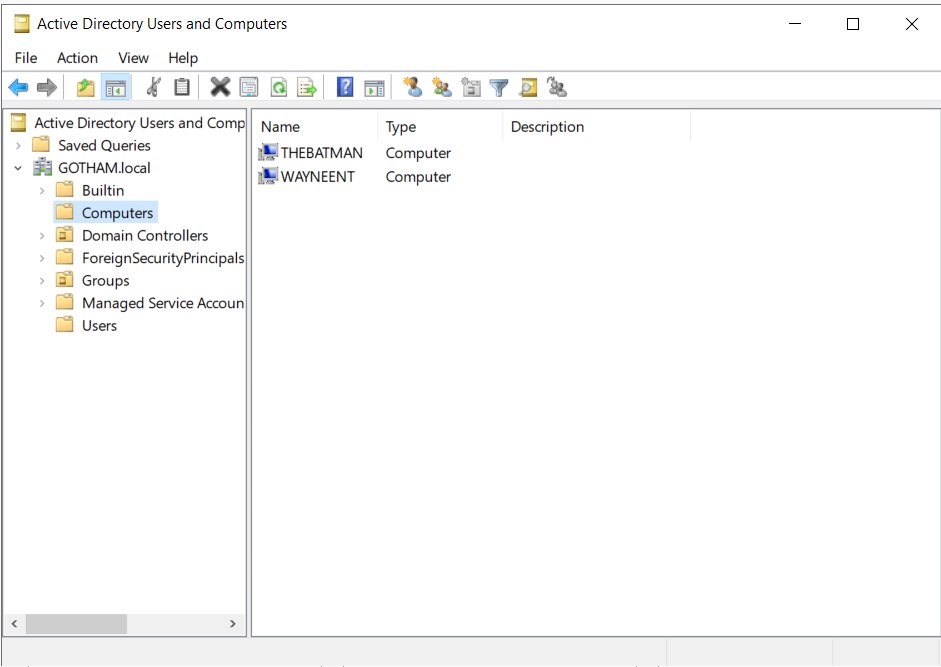

Computers OU

RDP into THEBATMAN with admin credentials; Username : GOTHAM\anjula and Password : labuser123Anjula

Go to Computer management > Local users and groups > Groups > Administrators.

Choose “Add”

Select Users, computers, service accounts or groups >

  • Enter object names to select : bwayne

Check names, then apply.

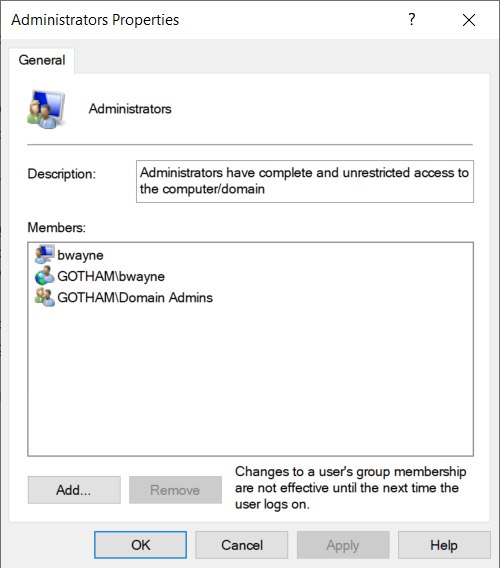

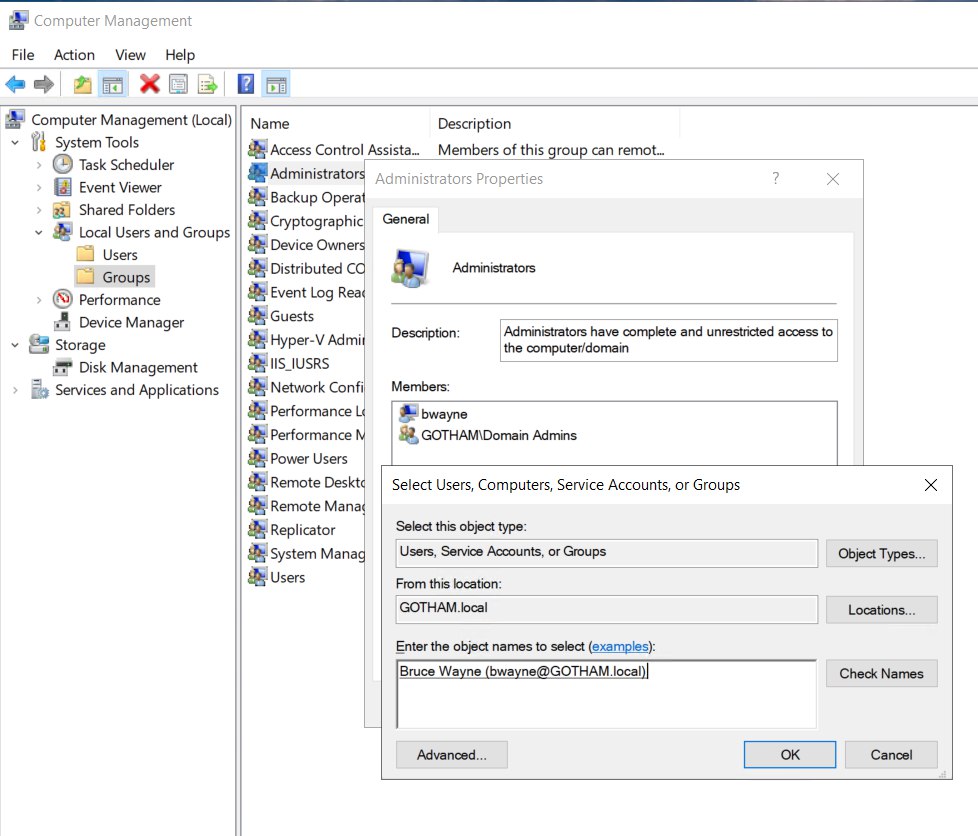

Adding bwayne to Admins Admin Group Confirmation

RDP into WAYNEENT with admin credentials; Username : GOTHAM\anjula and Password : labuser123Anjula

Go to Computer management > Local users and groups > Groups > Administrators.

Choose “Add”

Select Users, computers, service accounts or groups >

  • Enter object names to select : lfox

Check names & choose “Add” again

  • Enter object names to select : bwayne

Check names, then apply.

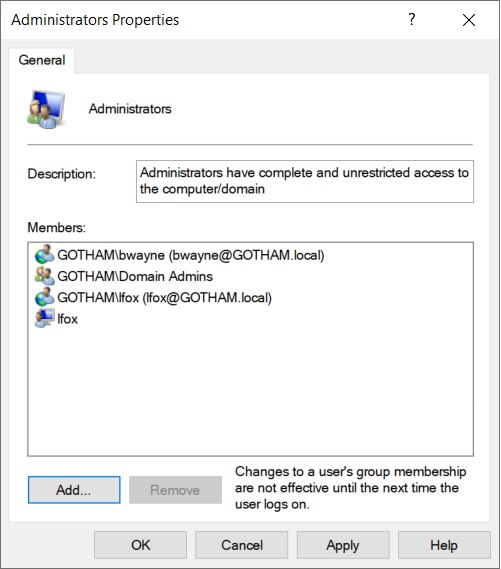

Adding lfox to Admins

Re-connecting to machines with Domain user accounts

RDP into THEBATMAN machine with;

  • Username : GOTHAM\bwayne
  • Password : Password1

RDP into WAYNEENT machine with both;

  • Username : GOTHAM\bwayne
  • Password : Password1

and

  • Username : GOTHAM\lfox
  • Password : Password2

Challenges & Lessons Learned

Building this lab in the cloud highlighted a few specific networking nuances:

  • DNS Resolution: The most critical step was manually setting the DNS server on the client VMs to the DC's internal IP (10.0.1.4). Without this, the clients would default to Azure's public DNS and fail to resolve GOTHAM.local.
  • RDP Interruptions: When changing the DNS settings on the network adapter, the RDP connection momentarily drops. It's important to be patient and wait for the connection to re-establish before panicking!
  • Naming Conventions: Planning the NetBIOS name and domain structure (like splitting OUs early) saved a lot of headache later when managing permissions.
